Name: Isolated LED Power Supply Burn In Test Chamber with 192CH 0055ACH and 170mm Height Custom Design
Brand: CPET
Price: 8400 USD

Brand Name : CPET

Model Number : CP-300403

Place of Origin : China

MOQ : 2sets

Price : 8400dollars/set

Payment Terms : L/C

Supply Ability : 30sets/month

Delivery Time : 35 work days

Packaging Details : Wooden case packing

Power of single channel : 100W/CH

Warranty period : 12 months free warranty

Weight : 400kg

Contact Now

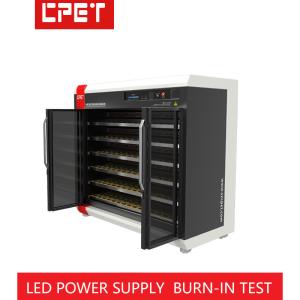

Isolated LED Power Supply Burn In Test Chamber Manufacturer Customized

Outstanding functions

1. Support parallel connection of channels under any load modes and meet power extension of products

2. Support power cc from low voltage to high voltage and from low current to large current

3. Be of built-in over-temperature and smoke-alarming automatic protection device

4. The model of E-load model can be selected

Performance parameters

Model	CP-300403
Power of single channel	100W/CH
Quantity of load channels	192CH
Scope of load voltage	2-450V
Scope of load current	0.05-5A/CH
Load precision	±(1%+0.1%FS)
Load Model	Electronic load type
Load Mode	CC+CV Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 380
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension	205012001900/custom design
