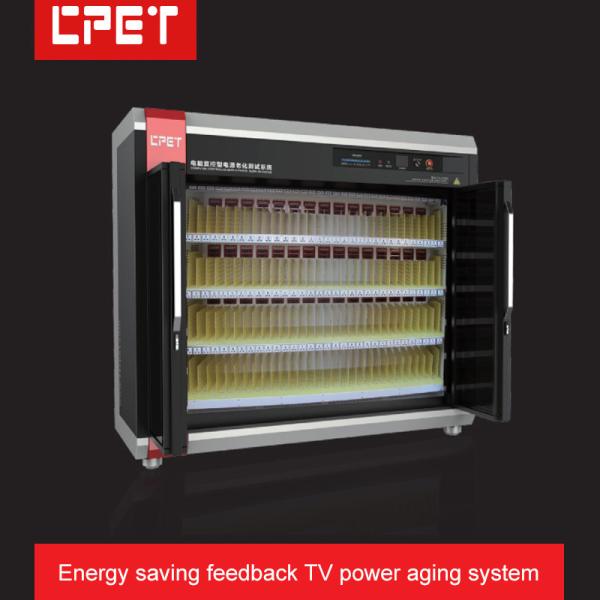

Aging Test Chamber with 60-120CH Load Channels 4 Ply Product Zone and ±(1%+0.1%FS) Load Precision for Power Supply Burn-In Testing

  • 1
  • 2
  • 3

Brand Name : CPET

Model Number : CP-301802

Place of Origin : China

MOQ : 2sets

Price : 7800dollars/set

Payment Terms : L/C

Supply Ability : 30sets/month

Delivery Time : 30 work days

Packaging Details : Wooden case packing

Quantity of load channels : 60-120CH

Number for plies of product zone : 4

Load precision : ±（1%+0.1%FS）

Contact Now

Burn In Test System Equipment Of Communication Power Supply Or SSN NPS Power Supply

Scope of application
Aging Test Chamber with 60-120CH Load Channels 4 Ply Product Zone and ±(1%+0.1%FS) Load Precision for Power Supply Burn-In Testing
Suitable for the burn-in testing of TV Board/power supply board
Outstanding functions
Aging Test Chamber with 60-120CH Load Channels 4 Ply Product Zone and ±(1%+0.1%FS) Load Precision for Power Supply Burn-In Testing
1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software
2. Be of list load mode and dynamic load mode
3. Be of editable switch sequence and load conversion function
4. Cooperate with monitoring software of power burn-in, for application
5. Be of five kinds of load modes such as CC, CV, CR, CP and LED
6. Support parallel connection of channels under any load modes and meet power extension of products
7. Support power burn-in from low voltage to high voltage and from low current to large current
8. Be of built-in over-temperature and smoke-alarming automatic protection device
9. Be of temperature monitoring function at products zone (optional)
Performance parameters
Aging Test Chamber with 60-120CH Load Channels 4 Ply Product Zone and ±(1%+0.1%FS) Load Precision for Power Supply Burn-In Testing

Model CP-3018
Power of single channel 125W/CH 150W/CH 200W/CH
Quantity of load channels 60-120CH
Scope of load voltage 2-450V
Scope of load current 0.5-10A/CH
Load precision ±(1%+0.1%FS)
Load Model Energy Saving
Load Mode CC+CV+CR+CP+LED Mode
Number for plies of
product zone		 4
Height for plies of
product zone(mm)		 260
Width of
products zone(mm)		 300
Temperature control of
products zone		 Temperature control type of products zone: normal temperature-60℃
Structure material of
trolley		 Elaborately processed and produced with cold-rolled sheet
Mode of main control Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT Connecting fixture boards (with various specifications) for first choice/custom design
External dimension
(L*W*H)		 2050*880*1900/custom design
