Water Cooled Aging Detection Equipment for Vehicle Power Supply Assembly OBC with Low Tension 3-60V and Total Input Power 35kW

Name: Water Cooled Aging Detection Equipment for Vehicle Power Supply Assembly OBC with Low Tension 360V and Total Input Power 35kW
Brand: CPET
Price: 5600 USD

Cheap Water Cooled Aging Detection Equipment for Vehicle Power Supply Assembly OBC with Low Tension 3-60V and Total Input Power 35kW for sale

Brand Name : CPET

Model Number : CP-3036

Place of Origin : China

MOQ : 2sets

Price : 5600dollars/set

Payment Terms : L/C

Supply Ability : 30sets/month

Delivery Time : 30 work days

Packaging Details : Wooden case packing

low tension : 3-60V

Total input current : 100A

Total input power : 35kW

Contact Now

Water-Cooled Aging Detection Equipment For Vehicle Power Supply Assembly OBC

Scope of application

Used for aging test of hybrid vehicles, electric vehicles, electric buses, DC-DC converters for new energy vehicles OBC, etc

Architecture diagram

Water Cooled Aging Detection Equipment for Vehicle Power Supply Assembly OBC with Low Tension 3-60V and Total Input Power 35kW

Performance parameters

System	System structure	1 control cabinet + 2 aging cabinets + 1 water temperature cabinet
	Overall size	690016002050mm
	Total floor area	6900*2500mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	100A
	Total input power	35kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements

Product Tags:

water cooled aging detection equipment

obc aging test equipment

obc aging detection equipment

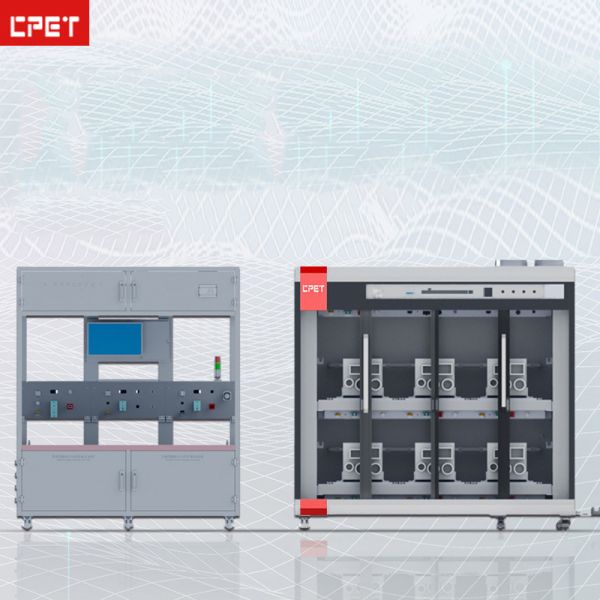

Water Cooled Aging Detection Equipment for Vehicle Power Supply Assembly OBC with Low Tension 3-60V and Total Input Power 35kW Images
